Automated Cutting  cnc accuracy ±0.01mm Laser Mirror and Glass Cutting System

Automated Cutting cnc accuracy ±0.01mm Laser Mirror and Glass Cutting System

  • High Light

    10.6µm Fiber Laser Cutting Machine

    ,

    Adjustable Speed Fiber Laser Cutting Machine

    ,

    Water Cooled Fiber Laser Cutting Machine

  • Cutting Speed
    Adjustable From 0-500mm/s
  • Working Environment
    26℃
  • Laser Type
    Infrared Picosecond
  • Splitting Laser Source Cooling Method
    Water Cooling
  • Splitting Laser Source Wavelength
    10.6µm
  • Voltage , Powe
    <8KW , AC220V
  • Positioning Accuracy
    ±2um
  • Support Image And Text Formats
    AI PLT DXF BMP Dst DWg LAS DXP
  • Place of Origin
    China
  • Brand Name
    CKD
  • Certification
    ISO CE
  • Model Number
    CKD-DP6070C
  • Minimum Order Quantity
    1
  • Price
    Negotiated
  • Packaging Details
    Wooden vacuum packaging
  • Delivery Time
    15-45 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    50 sets per month

Automated Cutting cnc accuracy ±0.01mm Laser Mirror and Glass Cutting System

Automated Cutting accuracy ±0.01mm Laser Mirror and Glass Cutting System

Product Description:CKD E Catalog2310.pdf

This state-of-the-art picosecond laser cutting machine is designed to provide both precision and efficiency in glass cutting applications. The machine comes equipped with a self-developed glass cutting head that is fitted with fully imported lenses. These lenses ensure that the laser beam is finely focused and can achieve a long focal depth. This feature makes it possible to carry out cutting and breaking processes separately or in an integrated manner, providing versatility to meet various production requirements.

The X and Y movement of the machine is controlled by top-of-the-range linear motors paired with 0.1um digital grating scales, which are manufactured in Germany. This combination enables exceptional precision and smooth motion control. The machine is equipped with a PSO (Position Synchronized Output) function that ensures uniform control of laser spot spacing. This function is essential to achieve consistent and high-quality cuts.

One feature that makes this machine stand out from others is the precise CCD positioning system and telecentric optical lenses. These features enhance accuracy and facilitate recognition of circular and cross marks that are relevant to the cutting process. Schneider Electric components and a Mean Well power supply are used in the construction of the machine, guaranteeing reliable and stable operation.

This laser cutting machine can cut single glass pieces up to 19mm thick. It is ideal for various industrial applications, including automotive and architectural glass. The motor and optical platforms of the machine are crafted from natural marble, providing unparalleled stability and precision.

Overall, this high-power picosecond laser cutting machine delivers superior cutting performance, efficiency, and reliability. It is an ideal choice for high-precision glass cutting tasks in various industries.

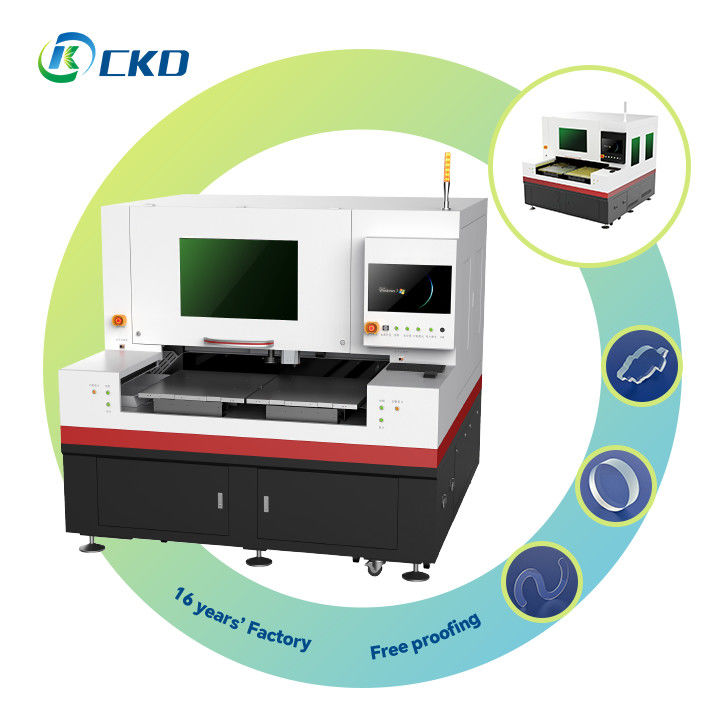

Automated Cutting  cnc accuracy ±0.01mm Laser Mirror and Glass Cutting System 0Automated Cutting  cnc accuracy ±0.01mm Laser Mirror and Glass Cutting System 1

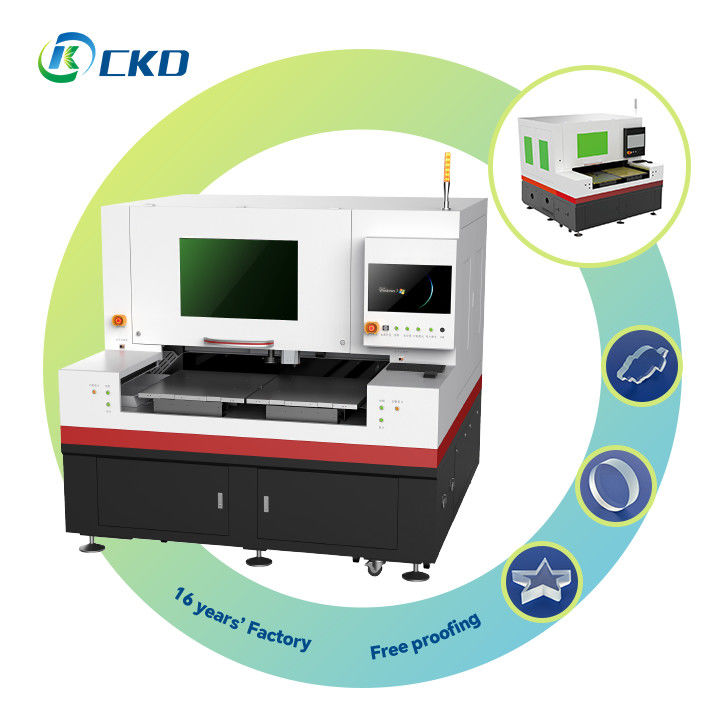

Automated Cutting  cnc accuracy ±0.01mm Laser Mirror and Glass Cutting System 2

Features:

Revolutionizing Glass Cutting with Cutting-Edge Technology

Our cutting-edge technology is transforming the glass cutting industry and establishing new benchmarks for exceptional performance and benefits. This advanced cutting system delivers superior cutting quality with exceptional precision, producing smooth, exact edges without any tapering. This ensures that the cut surfaces remain parallel, eliminating any narrowing along the edges and enhancing the smoothness of the final product.

One of the standout features of our technology is its burr-free performance, which ensures clean, flawless, and smooth edges without the need for additional deburring operations. As a result, it saves precious time and cuts down labor costs significantly. Additionally, our technology minimizes chipping and ensures that the material's edges remain intact, which is particularly crucial for delicate applications.

Our technology is designed to be cost-effective, with low operational costs, making it an optimal choice for businesses of all sizes. It boasts high yield rates, enabling more material to be processed within a shorter period, leading to boost production efficiency. Besides, the system uses minimal consumables and is highly energy-efficient, which contributes to lower overall production costs and supporting a greener environment.

Our cutting system is versatile, capable of high-speed and precise cutting of irregular shapes, and effectively maintaining the quality of the final product, even with complex geometries. This versatility makes it an ideal solution for various applications in the glass cutting industry, catering to a wide range of industries. Additionally, the technology is environmentally friendly with no pollution, dust, or wastewater production, ensuring a clean and safe working environment that aligns with sustainable manufacturing practices.

In summary, our cutting technology provides unparalleled quality, efficiency, and sustainability. It guarantees precise cuts with no taper or burrs, minimal chipping, low operational costs, high yield rates, low consumables and energy consumption, and high-speed cutting of irregular shapes, all while ensuring an eco-friendly process free of pollution, dust, or wastewater production.



Technical Parameters:

Specification Description
Cooling Method Water cooling
Pulse Width <10ps
Pulse Frequency 1Hz - 1000kHz
Wavelength 1064nm
Beam Quality M^2 < 1.2
Power 50W (options: 10W, 20W, 30W, 60W, 80W, etc.)
Laser Type Infrared picosecond pulse laser
Drive Motor XY Linear Motor + Optical Grating Scale
Positioning Accuracy ±2um
Repeatability ±1.5um
Acceleration 1G
Linear Speed Up to 1000mm/s
Cutting Speed Adjustable from 0-500mm/s
Cutting Thickness Ultra-clear glass single cut ≤19mm, Blue glass double cut ≤19mm
Minimum Cutting Burr ≤5um
Cutting Precision ±0.01mm
X/Y Cutting Range 610×700mm
Laser Type RFC02 (Radio Frequency CO2)
Cooling Method Water cooling
Wavelength 10.6μm
Power 150W (options: 250W/350W)
Pulse Frequency 1-100kHz
Weight Approximately 3500KG / 40000KG
Machine Dimensions (Option 1) Length 2550mm x Width 2080mm x Height 1960mm
Machine Dimensions (Option 2) Length 2150mm x Width 2080mm x Height 1960mm
Voltage, Power <8KW, AC220V



Applications:

Application Industries for Glass

Glass is a versatile material used in a variety of industries due to its unique properties. It is a transparent, durable, and scratch-resistant material that can be shaped into different forms to suit specific applications. Here are some of the industries where glass is prominently used.

Types of Glass Used in Various Industries

Not all glass is the same, and the type of glass used in a specific industry depends on its properties, durability, and resistance to different environmental factors. The various types of glass used in different industries include:

  • Optic/UTG/Willow/Brittle Biomedical glass
  • Architectural decoration/Bathroom glass
  • Car glass/Instrumentation panel glass
  • Mobile/Watch sapphire cover, Camera/CCTV Lens glass
  • Home appliance glass panel, Lighting glass
  • Photovoltaic glass
Glass Processing Industry

Glass processing is an essential part of the glass industry. It involves different techniques to shape, cut and modify the properties of glass according to the required application. Various types of glass processing techniques include:

  • Tempering and Laminating for increased safety
  • Coating and Etching to enhance durability and aesthetics
  • Sandblasting and Beveling for added texture
  • Cutting and Drilling to form intricate shapes

The processed glass is then used in various industries according to their needs. For example, tempered and laminated glass is commonly used in the automobile industry, while coated and etched glass is often used in homes and buildings for windows and doors. Sandblasted and beveled glass is popular in decorative and artistic applications, and cut and drilled glass finds use in scientific and medical apparatus.

Major Industries Featuring Glass

Some of the major industries that feature glass are:

  • Automobile Industry
  • Real Estate Industry
  • Communication Media Industry
  • Home Appliance Industry
  • New Energy Industry

Each of these industries has unique requirements and areas of application that are best suited to different types of glass. Glass plays an important role in our daily lives and has become an integral part of various industries. As new technology and materials emerge, the future will undoubtedly see further innovation and expansion regarding the use of glass across industries.



Support and Services:

The Laser Glass Cutting Machine is a high-tech product that requires specialized technical support and services. Our team of experts is dedicated to providing the following services:

  • Installation and setup of the machine
  • Training on how to operate and maintain the machine
  • Regular maintenance and repairs to ensure optimal performance
  • Remote technical support for any issues or troubleshooting needs
  • Upgrades and updates to keep your machine up-to-date with the latest technology

We are committed to providing exceptional customer service and ensuring that your Laser Glass Cutting Machine operates at its best. Please do not hesitate to reach out to us for any technical support or service needs.
