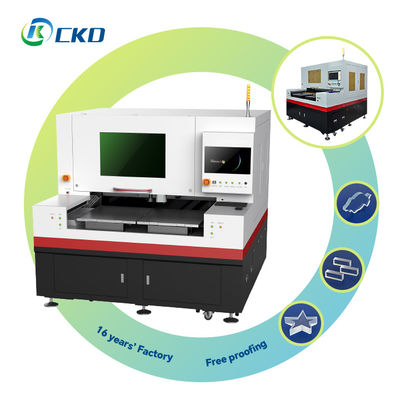

CKD Speed Laser Glass Cutting Machine With Ultra Picesecond Precision and Water Cooling

CKD Speed Laser Glass Cutting Machine With Ultra Picesecond Precision and Water Cooling

  • Cooling System
    Water Cooling
  • Working Environment
    26℃
  • Cutting Speed
    Adjustable From 0-500mm/s
  • Linear Speed
    Up To 1000mm/s
  • Brand
    CKD
  • Cutting Area
    400mm*500mm/ 600*700mm/ 600*900mm
  • Key Selling Points
    Ultra Fast Picesecond
  • Support Image And Text Formats
    AI PLT DXF BMP Dst DWg LAS DXP
  • Place of Origin
    China
  • Brand Name
    CKD
  • Certification
    ISO CE
  • Model Number
    CKD-DP6070C-50E CKD-DP6070C-60E CKD-DP6070C-80TE CKD-DP6070C-50ECKD-DP6070S-50E CKD-DP6070S-60E CKD-DP6070S-80TE CKD-DP6070S-80ECKD-DP6070D-50E CKD-DP6070D-60E CKD-DP6070D-80TE CKD-DP6070D-80ECKD-SP6070S-50E CKD-SP6070S-60E CKD-SP6070S-80TE CKD-SP6070S-80E
  • Minimum Order Quantity
    1
  • Price
    Negotiated
  • Packaging Details
    Wooden vacuum packaging
  • Delivery Time
    25-45 days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    60sets per month

CKD Speed Laser Glass Cutting Machine With Ultra Picesecond Precision and Water Cooling

Product Description:CKD E Catalog2310.pdf

  1. High-Power Picosecond Laser Source: Utilizes a powerful picosecond laser for superior cutting precision.
  2. Custom Glass Cutting Head: Features a self-developed cutting head with imported lenses, ensuring a fine beam and extended focal depth.
  3. Versatile Cutting Processes: Capable of both integrated and separate cutting and breaking processes.
  4. Premium Linear Motors and Grating Scales: Equipped with high-end linear motors for X/Y axes and German 0.1μm digital grating scales for precise movements.
  5. Advanced Motion Control: Includes standard PSO function for consistent laser spot spacing control.
  6. Precise Positioning System: Fitted with a positioning CCD and telecentric optical lenses for accurate recognition of circular and cross marks.
  7. High-Quality Electrical Components: Utilizes electrical components from Schneider Electric, France.
  8. Reliable Power Supply: Features a switching power supply from Mean Well, Taiwan.
  9. Thick Material Cutting: Capable of cutting materials up to 19mm in thickness.
  10. Stable Motor and Optical Platform: The base is constructed from natural marble, enhancing stability and precision.

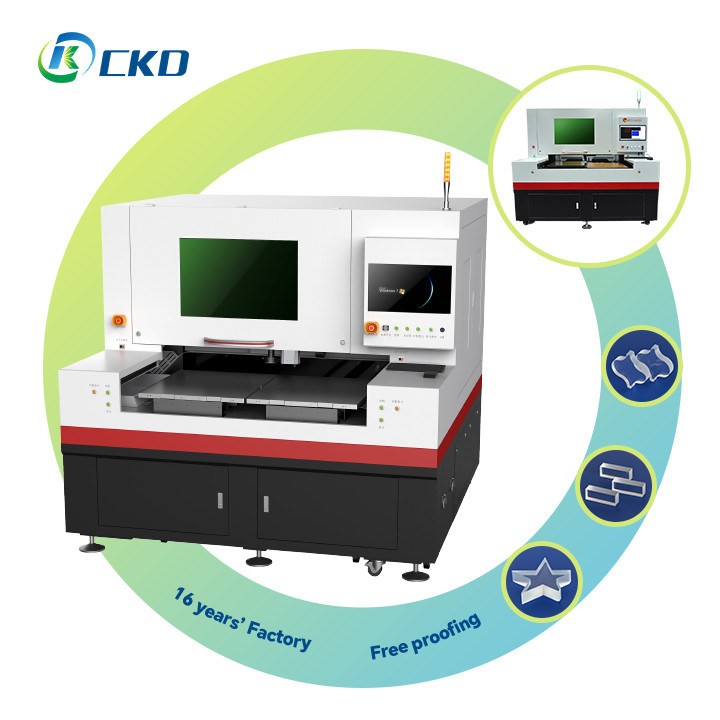

    CKD Speed Laser Glass Cutting Machine With Ultra Picesecond Precision and Water Cooling 0

Features:

  • Superior Surface Finish: Achieves an exceptionally smooth and high-quality finish on the cut surfaces.
  • Consistent Edge Width: Maintains uniform edge width without tapering, ensuring parallel cut surfaces.
  • Burr-Free Cuts: Leaves no sharp edges or burrs, eliminating the need for post-cut deburring.
  • Minimal Chipping: Results in very little chipping at the material edges during the cutting process.
  • Cost-Effective: Features low operational costs, making it economical to run.
  • High Efficiency: Enhances production efficiency by processing more material in less time.
  • Resource and Energy Efficient: Utilizes fewer consumables and is energy-efficient.
  • High-Speed Irregular Shape Cutting: Capable of rapidly cutting materials into irregular shapes.
  • Eco-Friendly: Produces no environmental pollutants during the cutting process.
  • Dust and Wastewater Free: Does not generate dust or wastewater, promoting an environmentally friendly operation.


Technical Parameters:

Specification
Description
The parameters of the cutting laser source

Cooling Method
Water cooling
Pulse Width
<10ps
Pulse Frequency
1Hz - 1000kHz
Wavelength
1064nm
Beam Quality
M^2 < 1.2
Power
50W (options: 10W, 20W, 30W, 60W, 80W, etc.)
Laser Type
Infrared picosecond pulse laser
Cutting Performance

Drive Motor
XY Linear Motor + Optical Grating Scale
Positioning Accuracy
±2um
Repeatability
±1.5um
Acceleration
1G
Linear Speed
Up to 1000mm/s
Cutting Speed
Adjustable from 0-500mm/s
Cutting Thickness
Ultra-clear glass single cut ≤19mm, Blue glass double cut ≤19mm
Minimum Cutting Burr
≤5um
Cutting Precision
±0.01mm
X/Y Cutting Range
610×700mm
Splitting laser source

Laser Type
RFC02 (Radio Frequency CO2)
Cooling Method
Water cooling
Wavelength
10.6µm
Power
150W (options: 250W/350W)
Pulse Frequency
1-100kHz
Parameters of power, size, and weight

Weight
Approximately 3500KG / 40000KG
Machine Dimensions (Option 1)
Length 2550mm x Width 2080mm x Height 1960mm
Machine Dimensions (Option 2)
Length 2150mm x Width 2080mm x Height 1960mm
Voltage, Power
<8KW, AC220V


Support and Services:

Comprehensive Support and Service for Laser Equipment
At CKD, we pride ourselves on providing exceptional support and service for all our laser equipment. Our commitment to customer satisfaction extends beyond the initial purchase, ensuring that you receive the highest level of care throughout the lifespan of your equipment.

Expert Technical Support: Our team of experienced engineers is available to assist you with any technical inquiries or troubleshooting needs. With extensive knowledge in laser technology, our experts are equipped to provide prompt and effective solutions to keep your operations running smoothly.

Customized Training Programs: We offer comprehensive training programs tailored to your specific needs. Whether you are a beginner or an experienced operator, our training sessions cover everything from basic operation to advanced techniques, ensuring that your team can fully utilize the capabilities of our laser equipment.

Prompt Maintenance and Repairs: To minimize downtime, we provide fast and reliable maintenance and repair services. Our skilled technicians use genuine parts and advanced diagnostic tools to ensure that your equipment is restored to optimal performance as quickly as possible.

Preventive Maintenance Plans: To prevent potential issues and prolong the lifespan of your equipment, we offer preventive maintenance plans. Regular check-ups and maintenance services help identify and address problems before they become significant, ensuring uninterrupted productivity.

Global Reach and Local Support: With a network of service centers and partners worldwide, we can provide local support wherever you are. Our global reach ensures that you receive timely assistance and parts delivery, no matter your location.

Comprehensive Warranty: Our laser equipment comes with a comprehensive warranty that covers parts and labor. This warranty reflects our confidence in the quality and durability of our products, giving you peace of mind and assurance in your investment.

Dedicated Customer Service: Our customer service team is dedicated to providing you with the best possible experience. From initial inquiries to after-sales support, we are here to assist you every step of the way, ensuring your satisfaction with our products and services.

Choose CKD for your laser equipment needs and experience unparalleled support and service designed to maximize your productivity and success.

FAQ:

Q1: What is the brand name of the laser glass cutting machine?

A1: The brand name of the laser glass cutting machine is CKD.

Q2: What models are available for the CKD laser glass cutting machine?

A2: The available models for the CKD laser glass cutting machine are: CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070C-50ECKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070S-80TE, CKD-DP6070S-80ECKD-DP6070D-50E, CKD-DP6070D-60E, CKD-DP6070D-80TE, CKD-DP6070D-80ECKD-SP6070S-50E, CKD-SP6070S-60E, CKD-SP6070S-80TE, CKD-SP6070S-80ECKD-SP6070D-50E, CKD-SP6070D-60E, CKD-SP6070D-80TE, and CKD-SP6070D-80ECKD-SP6070C-50E, CKD-SP6070C-60E, CKD-SP6070C-80TE, CKD-SP6070C-80E.

Q3: What is the certification of the CKD laser glass cutting machine?

A3: The CKD laser glass cutting machine is certified with ISO CE.

Q4: What is the minimum order quantity for the CKD laser glass cutting machine?

A4: The minimum order quantity for the CKD laser glass cutting machine is 1.

Q5: What is the packaging method and delivery time for the CKD laser glass cutting machine?

A5: The CKD laser glass cutting machine is packaged with wooden vacuum packaging and the delivery time is 25-45 days.

Q6: What are the payment terms and supply ability for the CKD laser glass cutting machine?

A6: The payment terms for the CKD laser glass cutting machine are L/C and T/T. The supply ability is 60 sets per month.
